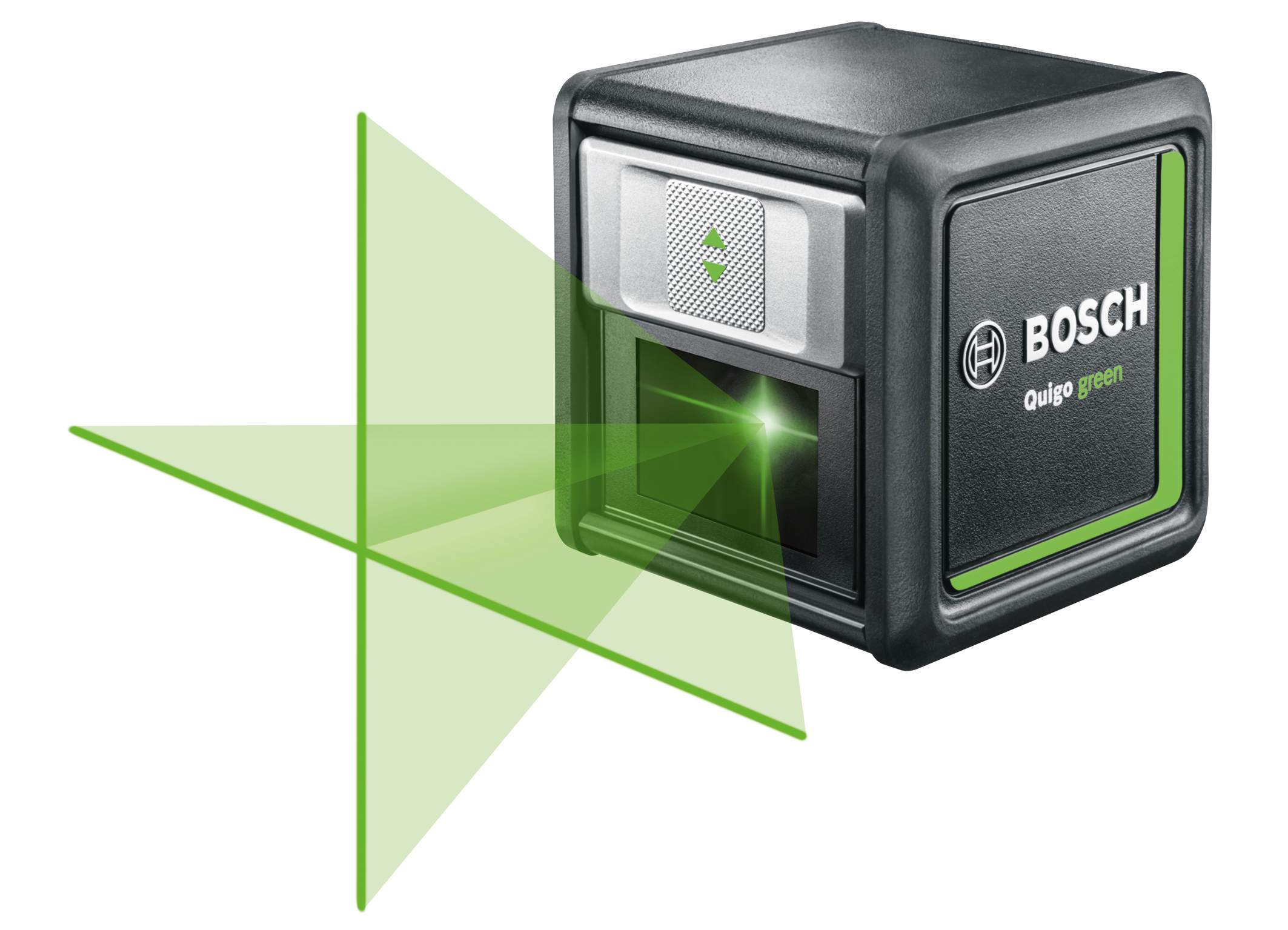

Better visibility thanks to green laser diodes: Quigo Green cross line laser from Bosch

Quigo-Green

Easy alignment in all lighting conditions

  • Precise laser lines also in bright indoor environments
  • More possible applications thanks to extended working range of up to 12 meters
  • New design with proven single-button operation
Manuel Roj

Manuel Roj >

X

Green laser lines for maximum visibility indoors: Bosch is expanding its cross line laser range for DIY enthusiasts with a new Quigo model featuring green laser diodes, the Quigo Green. The advantage for the user: Green laser lines are up to four times more visible to the human eye than red laser lines. That makes the Quigo Green's laser lines easy to see also in bright environments, for example near a window facade. In addition, the Quigo Green now provides precise results in a working range of 12 meters – and therefore offers an even wider variety of applications: Correctly positioning curtain rods, leveling kitchen and bathroom cabinets, decorating walls with tiles or patterned wallpaper – with the Quigo Green, do-it-yourselfers can align objects quickly and precisely with an accuracy of ± 0.8 millimeters per meter. The Quigo Green also sets itself apart from previous models with its new design: The handy cube now comes in black with a decorative light-green frame.

Instantly ready to use, easy and intuitive to operate

Of course the Quigo Green still features the proven single-button operation: Just open the protective cover and two intersecting laser lines project an angle of exactly 90 degrees onto the wall. The Quigo Green automatically compensates for irregularities of up to four degrees and signals any deviations from this with a flashing laser line. This is, for example, the case when do-it-yourselfers use the tilt function to align diagonal patterns, lines or railings. If the protective cover is closed, the device switches off immediately and the internal pendulum is stopped ready for transport.

Flexible positioning for a wide range of applications

The universal clamp is included with the Quigo Green as standard, and it allows the device to be easily fixed to table tops, ladders, shelves or even stair railings. This is made particularly easy by the adapter plate, which also features fine adjustment in a range of ± 2 centimeters, making it unnecessary to frequently readjust the universal clamp. The adapter plate can be fixed to the top, bottom or rear of the Quigo Green, providing do-it-yourselfers even more flexibility: It could be positioned directly beneath the ceiling, for instance, for marking out a border. Furthermore, the adapter plate can also be attached to a standard tripod with a ¼-inch thread.

The Quigo Green is available from April 2019. All prices are recommended retail prices including VAT.

SpecificationsQuigo Green
Laser diode/Laser class500 – 540 nm/2
Working range12 m
Leveling accuracy± 0.8 mm/m
Leveling time6 s
Self-leveling range± 4°
Tilt function Yes
Power supply2 x 1.5 V LR03 (AAA)
Dimensions (length x width x height)65 x 65 x 65 mm
Weight including batteries270 g
Scope of delivery/recommended retail price including VATTool including MM2 universal clamp, adapter plate and batteries: €79.99

Subject to change.
